Essential Guide To Choosing The Right AC DC Power Supply for Your Project

In the vast landscape of modern electronics, the AC DC power supply is one of the most vital components in any system. Whether you're developing life-critical healthcare equipment, building automation systems for industrial settings, or designing smart consumer gadgets, the reliability and performance of your project heavily depend on one key element: the quality and suitability of the power supply.

This guide is designed to help engineers, designers, and project managers understand how to evaluate and choose the right AC DC power supply. We'll walk through the fundamentals, core considerations, and specific recommendations for various applications, including healthcare equipment, industrial automation, consumer electronics, and commercial devices.

Understanding the Role of AC DC Power Supplies

At its core, an AC DC power supply performs a simple but crucial task: converting alternating current (AC), which comes from wall outlets or utility lines, into direct current (DC), which electronic circuits and components require. The conversion is not just about changing the type of current—it also involves adjusting voltage levels, filtering noise, ensuring stable output under varying conditions, and protecting the load from power anomalies.

Many devices, from medical imaging systems to vending machines, cannot function reliably—or safely—without the proper DC power. This makes the choice of power supply not just a technical decision, but a foundational design choice.

How Application Influences Power Supply Requirements

Different industries and use cases demand different power characteristics. A one-size-fits-all approach does not work when selecting a power supply, especially when your project falls under a regulated or mission-critical domain.

Healthcare Equipment

Medical systems place extremely high demands on electrical performance and safety. Power supplies for healthcare must meet stringent regulatory standards such as IEC 60601-1, which governs electrical safety, insulation, and leakage current. Devices like patient monitors, infusion pumps, and surgical tools often require not only low-noise and stable output but also isolation barriers to protect both the patient and the operator. In some cases, redundancy and backup power capabilities are needed to ensure uninterrupted operation during outages.

Industrial Automation

In the industrial sector, reliability and robustness are key. Power supplies must operate under harsh conditions such as fluctuating temperatures, vibration, dust, and electrical noise from nearby machinery. Voltage and current stability are essential, as automation equipment—like PLCs, actuators, and motors—are sensitive to power disturbances. Additionally, power supplies often need to integrate into control cabinets via DIN rail mounts and must provide long operational lifespans to minimize downtime in production environments.

Consumer Electronics

Designing for the consumer market prioritizes compact size, energy efficiency, and compliance with regional standards. Devices such as home assistants, wearable tech, and entertainment systems must often pass EMC compliance and energy regulations like ENERGY STAR or ErP directives. In these cases, aesthetics and thermal performance are nearly as important as electrical functionality. The power supply must deliver clean power while staying small, lightweight, and cost-effective.

Commercial Devices

Commercial environments involve public or semi-industrial installations—think digital signage, vending machines, or self-service kiosks. These systems typically run continuously and must resist environmental interference. Power supplies here are expected to deliver a stable voltage in widely varying operating conditions. They must be protected against overvoltage, short circuits, and heat buildup, and often require sealed enclosures to prevent dust or moisture ingress.

Key Technical Considerations

When selecting an AC DC power supply, understanding the core technical specifications is critical. These characteristics determine how well the power supply will integrate with your system and support its intended function.

The first factor to evaluate is input voltage compatibility. Most modern power supplies are designed to accept a universal input range, typically from 85V to 264V AC, allowing them to operate in various regions around the world without issue. This is especially important for devices intended for international deployment.

Next, consider the output voltage and current. The power supply must deliver a DC voltage that precisely matches the requirements of your load, whether that’s 5V for a microcontroller-based device or 24V for industrial actuators. More importantly, it must supply sufficient current under both typical and peak load conditions. It is advisable to include a safety margin of 20–30% above the maximum expected current draw.

Another critical element is the total power rating, calculated by multiplying the output voltage by the required current. However, this nominal figure should not be taken at face value. It is essential to consider how the power supply performs under thermal stress, as heat buildup can significantly reduce available output power in real-world conditions. Look for products with a derating curve and ensure your application stays well within safe limits at the anticipated ambient temperature.

Efficiency is also paramount. Inefficient power supplies waste energy as heat, which not only increases energy costs but also places thermal stress on the system. High-efficiency designs, often rated above 90%, are ideal, especially for applications that require fanless or silent operation. In many industrial and commercial devices, power factor correction (PFC) is also necessary to reduce harmonic distortion and comply with grid standards.

Safety, Compliance, and Reliability

For devices operating in regulated sectors like medical and industrial markets, compliance with safety standards is non-negotiable. The power supply must meet relevant international certifications such as UL, CE, FCC, and RoHS. In medical contexts, IEC 60601-1 compliance is essential, as it covers not only electrical safety but also electromagnetic compatibility and mechanical design.

Protection features are another aspect that should never be overlooked. Built-in safeguards such as overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection (SCP), and thermal shutdown help protect both the power supply and the end device from damage. These features are especially crucial in mission-critical systems where failure can result in loss of data, system downtime, or safety hazards.

Mean Time Between Failures (MTBF) is a common metric used to gauge reliability. Power supplies with MTBF ratings over 100,000 hours are generally considered suitable for long-term use in industrial or commercial environments. It’s also worth considering environmental ratings—such as IP levels—for protection against dust and moisture when deploying in exposed or rugged locations.

Environmental and Physical Constraints

Designing with environmental factors in mind ensures that the power supply can perform reliably under all expected conditions. For instance, operating temperature ranges must accommodate the full spectrum of your installation environment. While many power supplies operate from -20°C to +70°C, additional cooling may be needed for high-load or enclosed setups.

Humidity, altitude, and vibration are also important considerations, particularly in industrial or transportation-related projects. If your system is to be used in a mobile, outdoor, or high-altitude setting, consult the derating guidelines provided by the manufacturer to ensure uninterrupted operation.

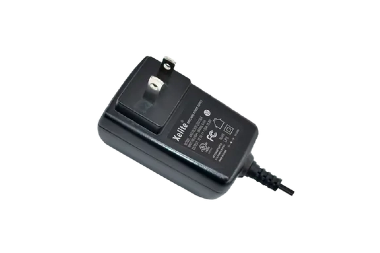

The form factor and mounting method are equally important. Options range from wall-mounted adapters and desktop bricks for consumer electronics, to open-frame and DIN rail types for embedded and industrial use. The size, shape, and enclosure type must align with your design constraints and deployment scenario.

Conclusion

Choosing the right AC DC power supply is crucial for any project, whether it’s in healthcare, industrial automation, consumer electronics, or commercial devices. Though often overlooked, the power supply is the foundation of system stability. A poor choice can lead to inefficiencies, reduced performance, or even failure—especially in critical applications. By understanding your specific needs, including voltage, current, environmental conditions, and safety requirements, you can make informed decisions that enhance the reliability and longevity of your product.

Whether you’re powering sensitive medical equipment, heavy-duty factory systems, or compact consumer devices, selecting a well-matched power supply ensures consistent performance and safety. If you’re not sure where to start, consult trusted manufacturers or industry experts who can help you find certified, high-quality solutions tailored to your application.
