Key Advantages of Using Desktop GaN Power Supplies in Medical Equipment

Healthcare equipment is evolving rapidly, becoming more compact, mobile, and performance-driven. This transformation is driven by the need for portable imaging systems, patient monitoring devices, infusion pumps, and other critical tools that must operate reliably in varied environments—from hospital wards and diagnostic centers to field clinics and mobile units.

A central challenge in this evolution is the power infrastructure. Traditional internal power modules often struggle to balance the demands for high efficiency, safety compliance, and compact size. As a result, desktop GaN-based Medical AC DC Power Supplies are emerging as a popular choice in clinical settings. These external, desktop-style units leverage Gallium Nitride (GaN) technology to deliver high power, enhanced safety, reduced heat, and increased flexibility for modern medical devices.



Portability and Space Efficiency

Compact Dimensions for Modern Needs

Healthcare equipment design has increasingly shifted toward portability and minimalism. Clinics and hospitals are often constrained by space, particularly in operating rooms, intensive care units, and mobile medical environments. Devices that take up less room—without compromising performance—are in high demand.

That’s where desktop GaN Medical AC DC Power Supplies truly shine. With dimensions of just 260 mm × 95 mm × 43 mm, these compact power sources are ideal for applications where every inch matters. They can easily be mounted or placed beneath stretchers, integrated into infusion pump carts, or used with portable diagnostic and imaging devices. Even in cluttered environments like emergency vehicles or mobile diagnostic stations, these power supplies offer unmatched versatility without adding bulk or unnecessary wiring complexity.

This form factor supports both fixed and mobile setups, giving medical engineers and device manufacturers more freedom in how and where to deploy equipment—enabling better ergonomics and streamlined workflows.

External Design Offloads Heat

Internal power supply modules often generate substantial heat, especially during continuous operation. This can lead to thermal stress on other internal components, compromising system stability, performance, and longevity. Moreover, internal fans or cooling systems needed to mitigate this heat can increase operational noise—an unwanted side effect in sensitive medical environments like surgical suites, NICUs, or patient recovery rooms.

Desktop GaN power supplies help solve these challenges. By keeping the power conversion process external to the main device, they eliminate a major source of internal heat buildup. The result is not only more stable internal temperatures but also quieter operation, as large internal fans can often be reduced or eliminated. This external setup enhances thermal management and improves device reliability over time.

Simplified Maintenance and Replacement

When repairs, upgrades, or safety inspections are needed, external desktop power supplies are much easier to access and replace compared to internal power modules. There's no need to open sterile or sealed enclosures—avoiding contamination risks or long service interruptions. Technicians can quickly swap a faulty unit with minimal disruption to equipment operation or patient care.

This ease of serviceability not only saves time and labor costs but also contributes to better uptime and improved infection control—a critical benefit in clinical settings.



High Power Output with Wide Voltage Range

Power Meets Versatility

In modern medical environments, power requirements vary greatly between devices. From compact infusion pumps to large diagnostic monitors and portable imaging machines, each application demands a tailored power solution. Desktop GaN Medical AC DC Power Supplies stand out for their ability to deliver up to 550 W of continuous power while offering a wide, selectable output voltage range between 19 V and 56 V DC.

This wide voltage capability allows a single power supply unit to accommodate multiple types of medical equipment. Instead of sourcing different supplies for each device, engineers and manufacturers can streamline their designs with a unified solution. Whether it's powering a sensitive biosignal monitor at 24 V or a higher-load imaging system at 48 V or more, these GaN-powered supplies offer the adaptability needed for diverse clinical applications.

In high-mix environments such as hospitals, mobile clinics, and research labs, this flexibility reduces procurement complexity, simplifies maintenance inventories, and allows for faster configuration changes—all without sacrificing reliability.

Smooth Operation with Tight Regulation

Precision is essential in medical technology. Devices used in diagnosis, monitoring, or therapy must receive consistent, tightly regulated power to function accurately and safely. Desktop GaN Medical AC DC Power Supplies provide ±5% load regulation, ensuring that voltage remains stable even as current demands fluctuate throughout device operation.

This tight regulation is especially valuable when powering sensitive components like sensors, actuators, and data acquisition systems. Whether during startup surges, continuous monitoring, or rapid power cycling, your equipment stays within safe operating parameters—supporting device longevity and patient safety.



Enhanced Safety for Medical Environments

Dual MOPP Compliance

When power supplies are used in equipment that connects directly or indirectly to patients, compliance with international safety standards becomes non-negotiable. GaN-based desktop medical power supplies are typically designed to meet 2 x MOPP (Means of Patient Protection) in accordance with IEC 60601 standards. This ensures reinforced insulation, low leakage current, and reliable patient safety isolation.

Dual MOPP design provides protection on both input and output sides, making these units suitable for critical patient-connected applications such as diagnostic imaging, infusion therapy, and surgical devices.

Protections Across All Conditions

To further ensure operational safety, these power supplies include multiple integrated protection features:

• Over-current protection (OCP): Automatically limits output current to prevent overheating or component damage during unexpected load conditions.

• Over-voltage protection (OVP): Cuts off excess voltage that might damage sensitive circuits or lead to unsafe operation.

• Short-circuit protection (SCP): Instantly shuts down the output in the event of a fault, protecting both the patient and the equipment from harm.

These built-in protections create a safety net, especially valuable in settings where medical personnel rely on stable, uninterrupted equipment performance.

Operating Across Diverse Climates

Medical equipment must perform consistently across a range of environmental conditions—from cold storage areas and field hospitals to standard operating rooms. These desktop GaN power supplies are built to operate reliably in temperatures ranging from –20 °C to +40 °C, offering confidence in performance even under thermal stress. This adaptability makes them ideal for global deployment and mobile healthcare setups.

Together, these advantages demonstrate why desktop GaN Medical AC DC Power Supplies are a smart, future-ready solution for critical medical applications.



Energy Efficiency and Environmental Compliance

Active Power Factor Correction

Hospitals often run dozens of powered devices simultaneously. Efficient power use isn’t just cost-effective—it contributes to facility-wide power reliability. Desktop GaN Medical AC DC Power Supplies use active Power Factor Correction (PFC) to minimize reactive power and reduce line loss. This ensures efficient delivery from the grid to the load.

Minimal Wasted Power at Idle

When devices are powered but idle, desktop power supplies with GaN technology consume less than 1 W in no-load (standby) mode. This not only saves energy but allows equipment to remain safely plugged in without unnecessary power consumption.

Green Compliance

Environmental stewardship is increasingly important for device makers and healthcare providers. Desktop GaN supplies are RoHS-compliant, meaning they are free from harmful substances like lead and mercury. Each unit contributes to a greener product lifecycle and helps organizations meet sustainability goals.



Conclusion

Desktop GaN-based Medical AC DC Power Supplies combine portability, reliability, safety, and energy efficiency—traits increasingly essential in modern medical equipment. Their compact size, wide voltage range, and compliance with global standards make them ideal for the next generation of mobile, cart-based, or bedside devices.

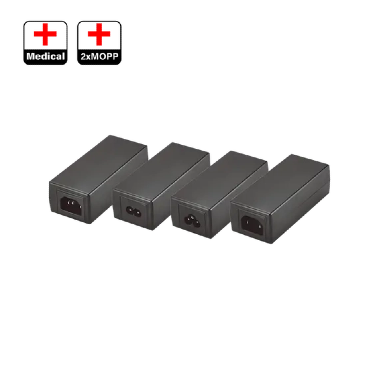

By partnering with experienced manufacturers like Xelite, healthcare device developers can harness GaN power technology through solutions like the P5YS550ZQ series. Designed for customization, bulk orders, and expert support, these power units address current performance requirements while future-proofing products for evolving medical environments.

Are you a medical device OEM, engineer, or healthcare professional looking to incorporate powerful, safe, and efficient power solutions into your products? Contact Xelite today to:

Request product specifications or datasheets

Discuss volume pricing and customization

Receive technical support tailored to your system design

Empower the next wave of innovative medical devices—reach out to Xelite now and explore how GaN-powered power supplies can redefine your product capabilities.
