The Basics of Surge Protection in Power Adapters

Surge protection is an essential feature in modern power adapters, playing a critical role in ensuring the safety and reliability of electronic devices. A power surge, often resulting from lightning strikes, power grid switching, or sudden changes in electrical load, can severely damage or destroy electronic circuits. In this article, we delve into the fundamentals of surge protection in power adapters, including the causes of surges, key protective components, design strategies, and practical applications.

Understanding Power Surges

A power surge, or transient overvoltage, is a brief spike in voltage that exceeds the normal operating voltage of an electrical circuit. Although these spikes typically last only microseconds to milliseconds, their impact can be catastrophic, particularly for sensitive components like microcontrollers, ICs, and switching transistors.

Common causes of surges include:

• Lightning strikes: Direct or nearby lightning can inject high voltage into power lines.

• Power grid switching: Utility grid reconfiguration or large load switching can induce transient voltage spikes.

• Inductive load switching: Motors, transformers, and relays can create back EMF surges.

• Electrostatic discharge (ESD): Static electricity can cause short, high-voltage bursts.

Why Surge Protection Matters in Power Adapters

Power adapters convert AC or DC input into regulated voltage suitable for devices such as laptops, routers, LED drivers, or medical equipment. These devices often contain sensitive electronic circuits that can easily be compromised by even a small surge.

Surge protection in power adapters helps to:

• Prevent equipment damage

• Improve adapter lifespan and reliability

• Ensure safety compliance with global standards (e.g., CE, UL, IEC)

• Reduce product returns and maintenance costs

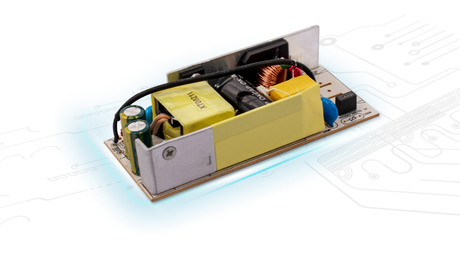

Key Components for Surge Protection

Various components are integrated into power adapter designs to provide effective surge protection. The most commonly used include:

1. Metal Oxide Varistors (MOVs) MOVs are nonlinear resistors that change resistance with voltage. Under normal conditions, they offer high resistance; during a surge, they rapidly conduct and clamp the voltage by diverting the excess energy to ground.

2. Transient Voltage Suppression (TVS) Diodes TVS diodes respond in nanoseconds to sudden voltage spikes. They are ideal for protecting low-voltage circuits and ICs, providing fast clamping and high reliability.

3. Gas Discharge Tubes (GDTs) GDTs are filled with inert gas that becomes conductive when ionized by a high surge voltage. They handle high-energy transients and are typically used in conjunction with MOVs for layered protection.

4. Common Mode Chokes and Filters These components suppress differential and common-mode surges in both power and signal lines, improving electromagnetic compatibility (EMC) and noise immunity.

5. Fuses and Thermistors While not strictly surge protective, fuses and thermistors provide overcurrent protection and help isolate fault conditions resulting from prolonged surge events.

Surge Protection Design Strategies

Designing surge-resistant power adapters requires careful planning and adherence to industry standards. Key design strategies include:

1. Compliance with Standards Follow IEC 61000-4-5 for surge immunity and ANSI/IEEE C62.41 for surge environment classifications. These standards define test conditions and surge levels for various environments.

2. Clamping Voltage Selection Choose MOVs or TVS diodes with appropriate clamping voltages based on the system’s operating voltage to avoid under-protection or unnecessary triggering.

3. Layered Protection Approach Use a combination of devices (e.g., GDT + MOV + TVS) to protect against both high-energy and fast-transient surges.

4. Optimal Placement Place surge protection devices as close as possible to the input terminals and critical circuit paths to minimize inductive effects and ensure fast response.

5. Thermal and Energy Ratings Ensure all protective components can handle the thermal and energy loads of expected surge events without failure.

Real-World Applications

Surge protection is essential in a wide range of power adapter applications:

• Consumer Electronics: Chargers for phones, tablets, and laptops often include MOVs and TVS diodes.

• LED Lighting: Outdoor LED drivers require high surge immunity due to exposure to lightning and line disturbances.

• Industrial Equipment: Power supplies for automation and control systems are frequently exposed to switching surges and inductive loads.

• Medical Devices: Regulatory compliance and patient safety demand high-reliability surge protection.

• Telecom and Networking: Adapters used in data transmission must withstand surges from long cable runs and ESD.

Maintenance and Monitoring

Surge protection components, especially MOVs, degrade over time with repeated exposure. Periodic testing or inclusion of status indicators in designs helps identify degraded protection before failure occurs.

Some advanced surge protective devices include self-monitoring functions and can signal when end-of-life is approaching, supporting proactive maintenance.

Conclusion

Surge protection in power adapters is not merely a design add-on but a critical requirement for performance, reliability, and safety. As electronic devices become more sensitive and widely deployed in diverse environments, the demand for robust surge protection continues to grow. By understanding the nature of surges, selecting appropriate components, and adhering to proven design strategies, engineers can ensure their power adapters perform safely and effectively under real-world conditions.
